The option of using Own CDN helps, for example, to server your server GTM within the same IP as your website which prevents the latest WebKit version from decreasing first-party cookie lifetime.
Below is an example of how you can configure Own CDN with CloudFlare.
Please note that you can use any other DNS provider, and Cloudflare here is just one example.

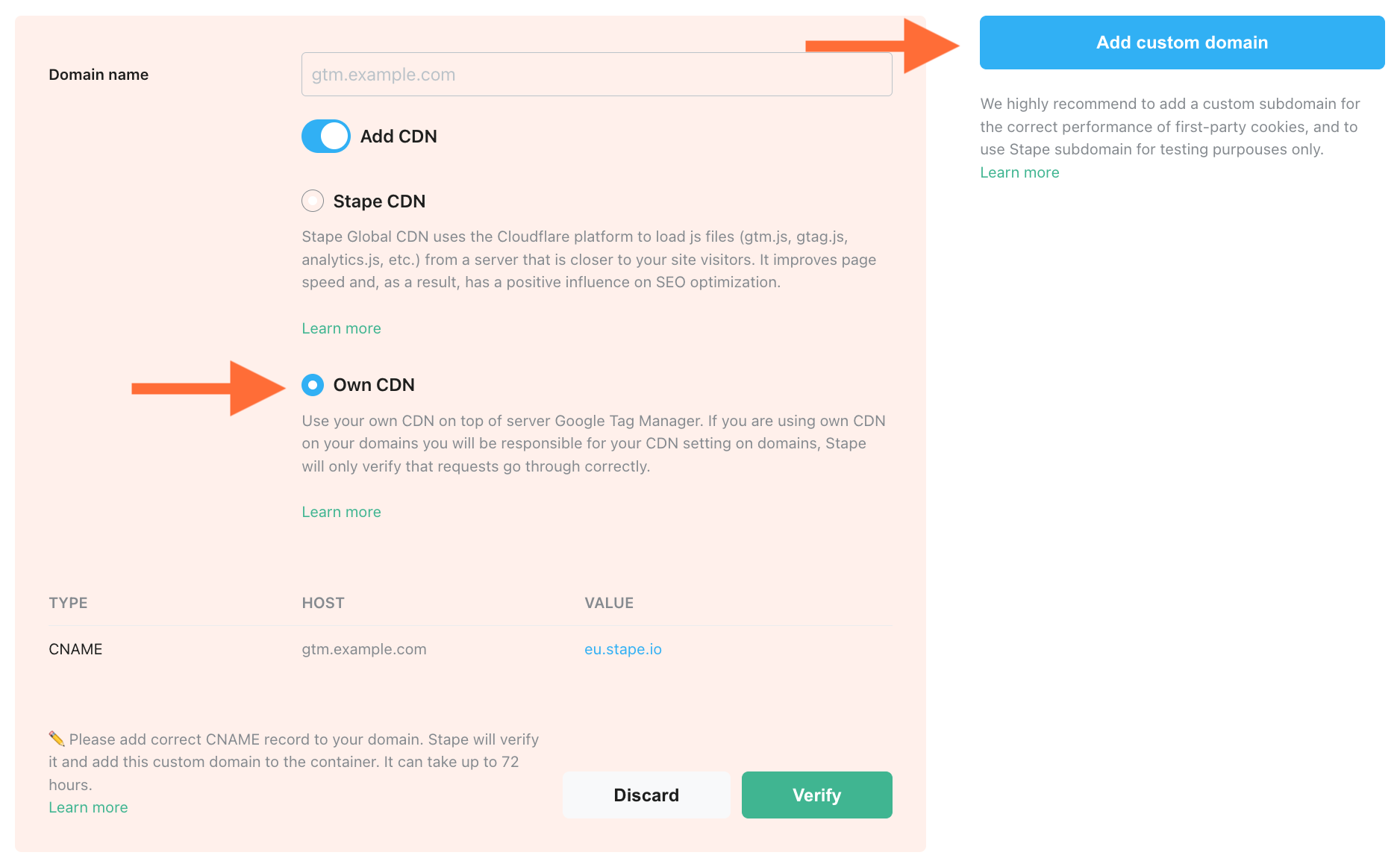

1. Go to your Stape container setting and select Own CDN.

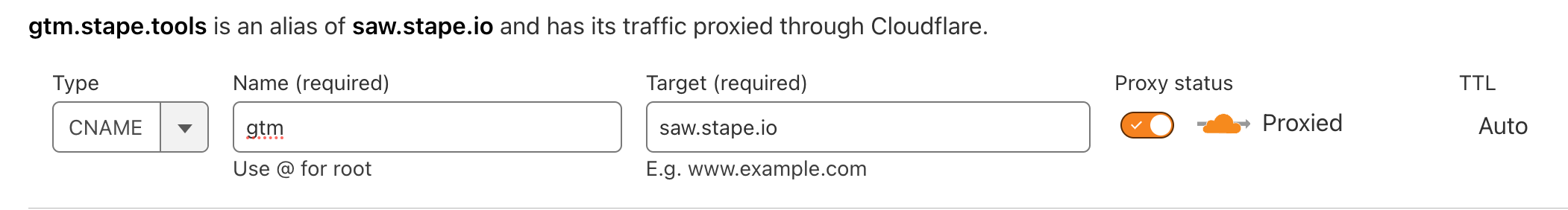

2. Go to CloudFlare and configure CNAME record for the tagging server URL. Please make sure that Proxied is enabled. The setting should look like in the screenshot below.

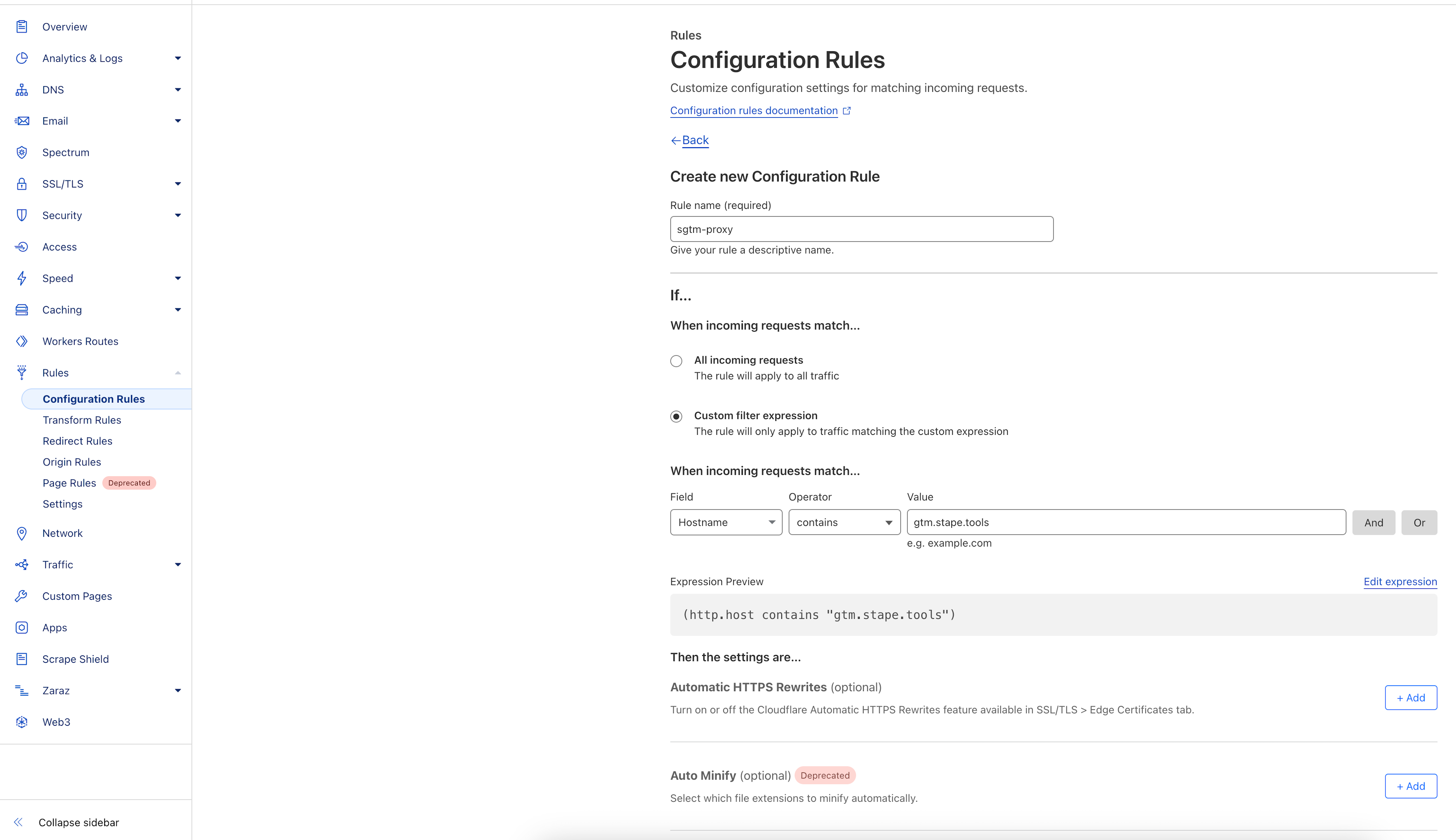

3. Go to the Rules → Configuration Rules - create a new rule
- Specify any name you like for the rule
- Select ‘Custom filter expression’
- Field: hostname
- Operator: contains
- Value: specify your sGTM subdomain. In our example is ‘gtm.stape.tools’

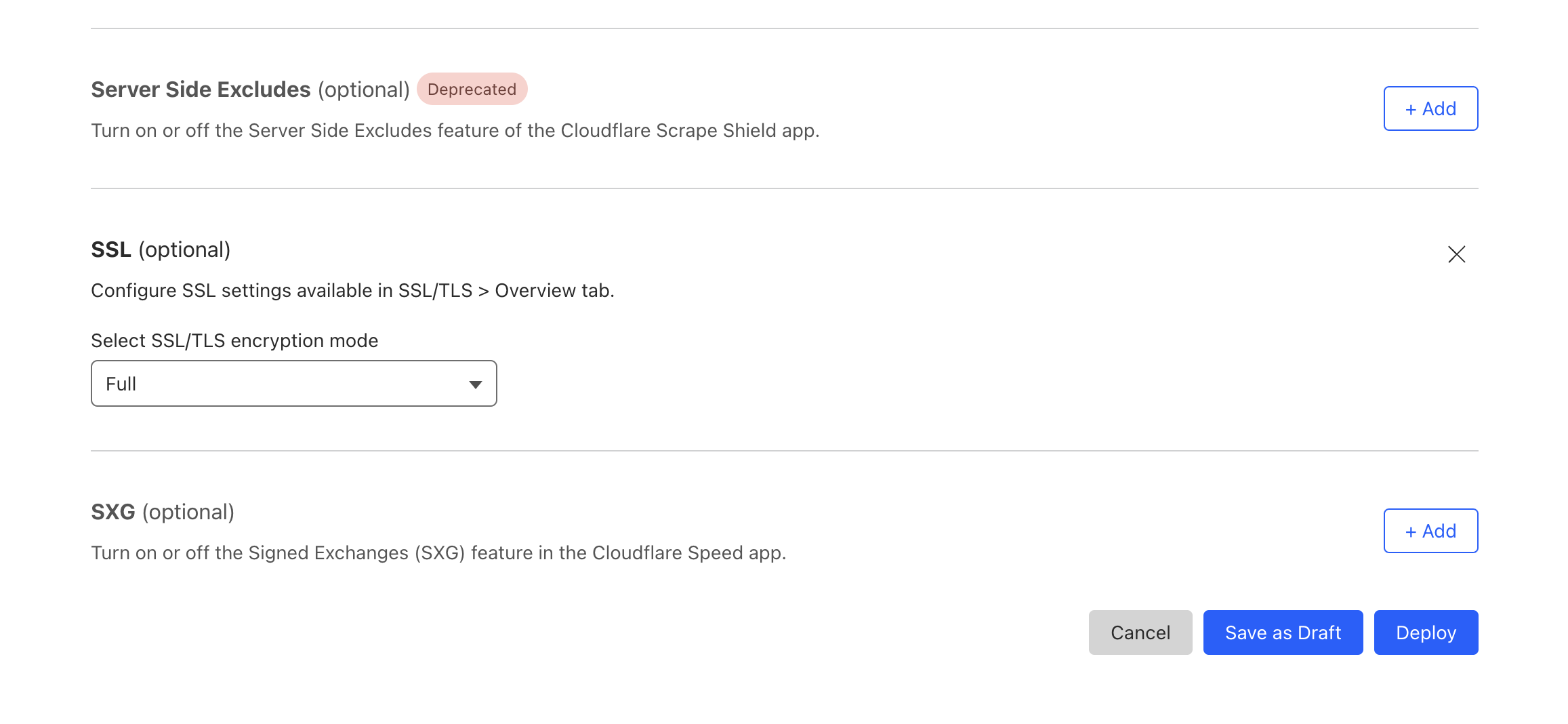

Scroll down on this page and find the ‘SSL’ feature. Activate it with ‘Full’ option.

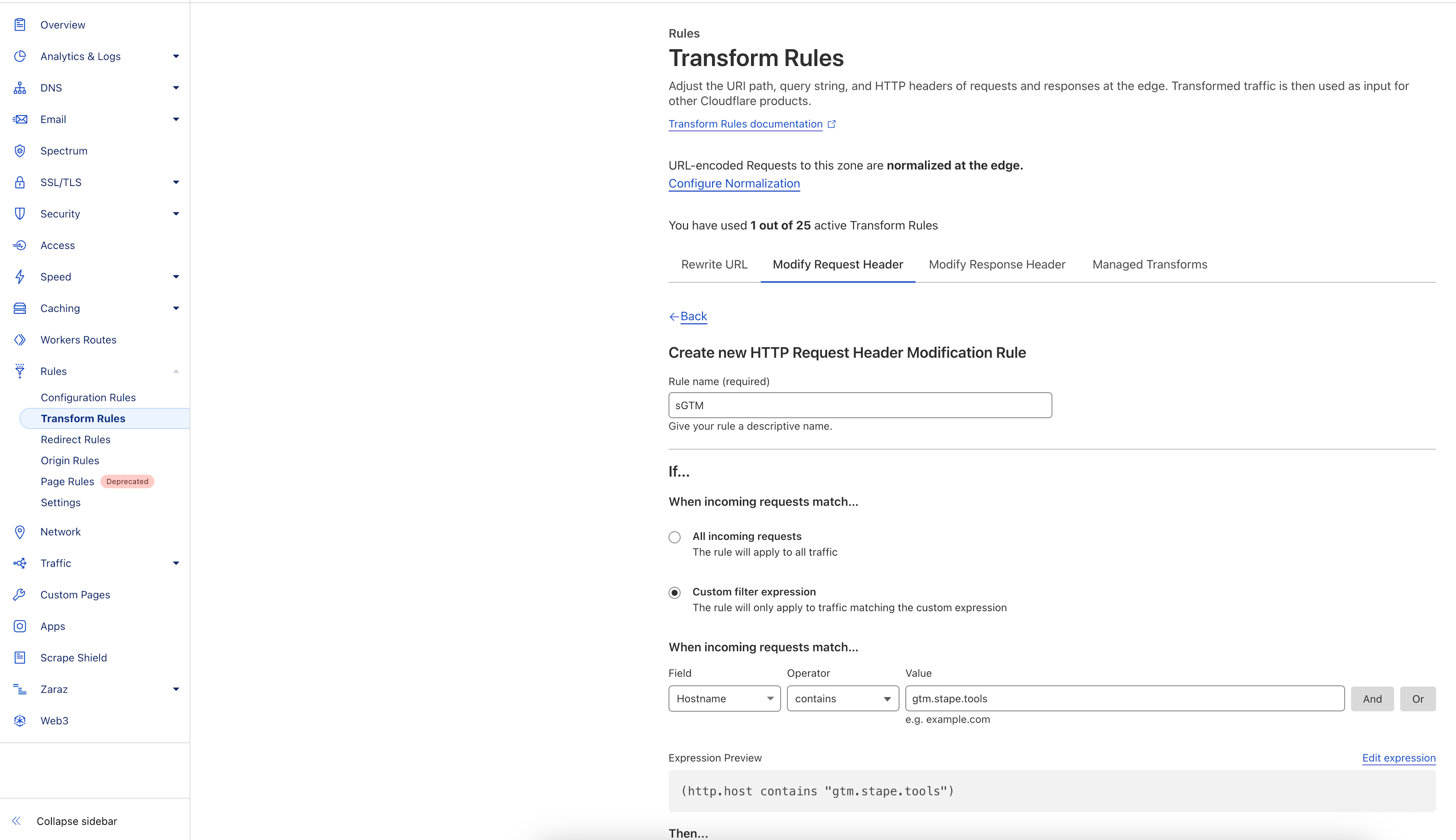

4. Go to the Rules →Transform Rules → Modify Request Header - create a new rule
- Specify any name you like for the rule
- Select ‘Custom filter expression’
- Field: hostname
- Operator: contains
- Value: specify your sGTM subdomain, in our example, it is ‘gtm.stape.tools’

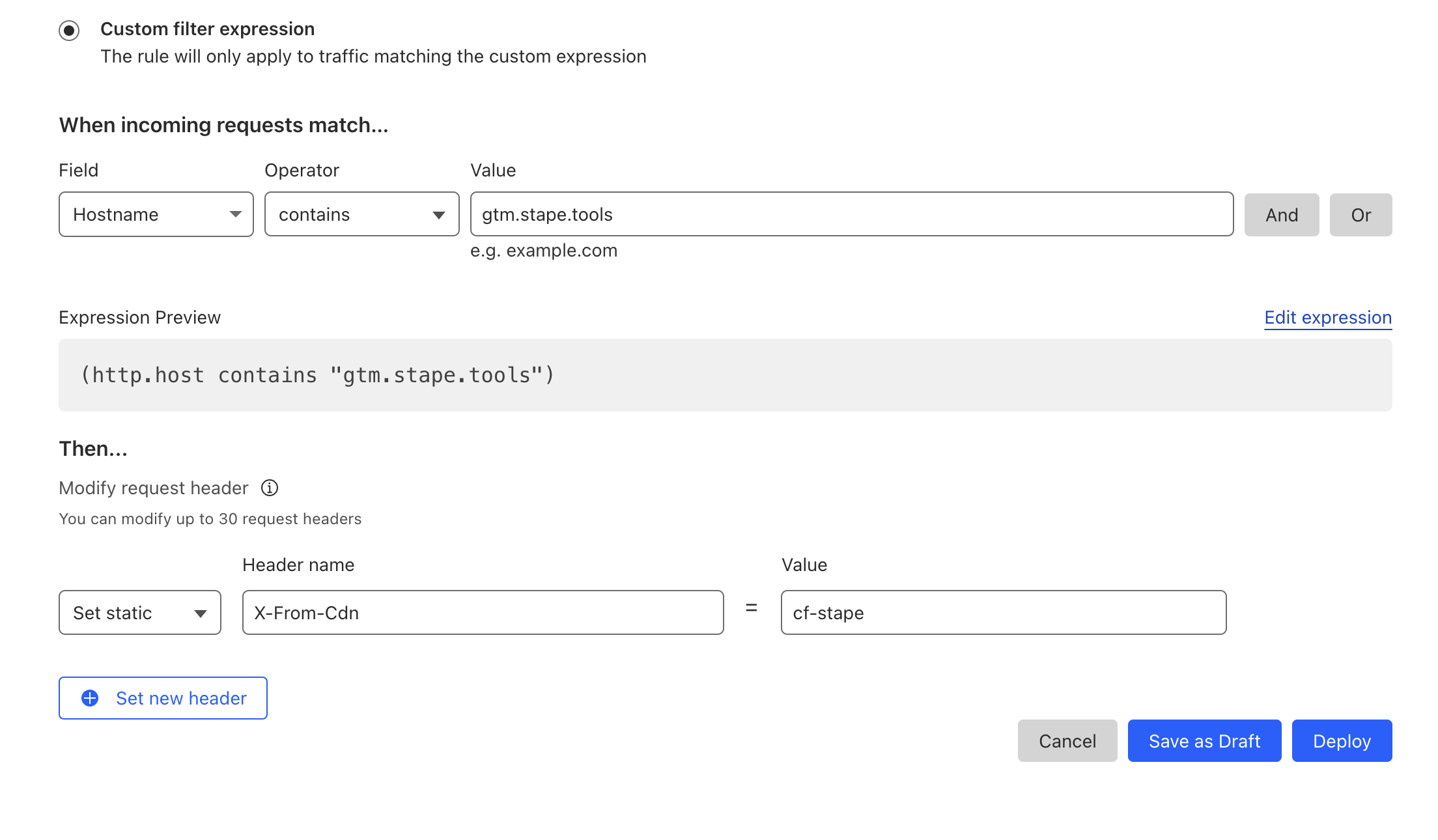

In the modify headers section, specify:
- Type: Set static
- Header name: X-From-Cdn
- Value: cf-stape
Deploy changes

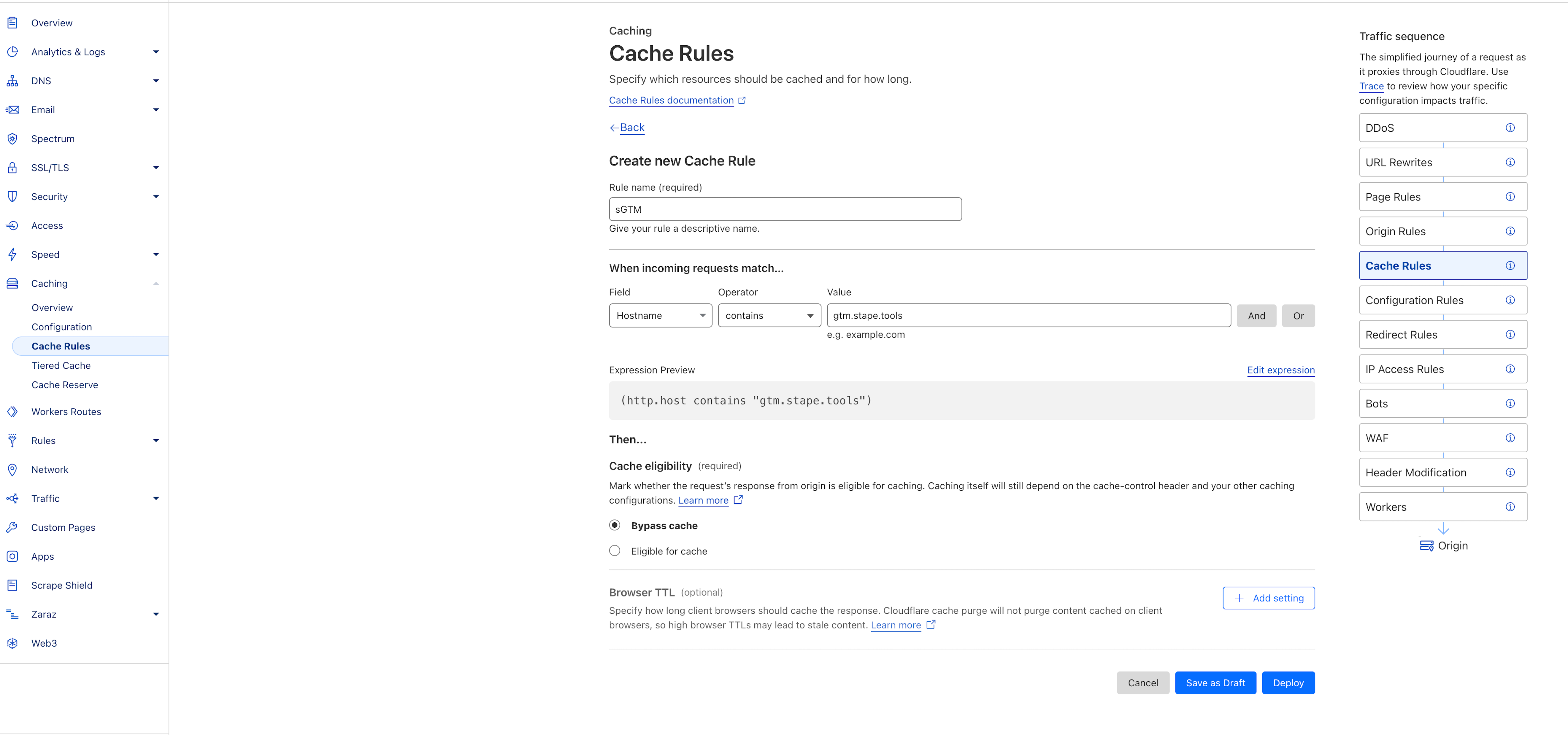

5. Go to the Caching → Cache Rules - create a new rule
- Specify any name you like for the rule
- Select ‘Custom filter expression’
- Field: hostname
- Operator: contains
- Value: specify your sGTM subdomain. In our example, it is ‘gtm.stape.tools’
Cache eligibility: Bypass cache
Deploy changes.
That's it, now all your requests to and from sGTM will be proxied through Cloudflare.
*If you are using a Web Application Firewall please make sure that it will not block these requests.
Problem with ERR_TOO_MANY_REDIRECTS error
If you get this error after configuration it is usually due to one of two reasons:
a) You have some additional rule that creates redirects, which causes this problem.
b) Problems with DNS configuration for the whole site. Switching SSL/TLS to the ‘Full’ option often helps.
You can read more about this problem here: https://developers.cloudflare.com/ssl/troubleshooting/too-many-redirects/.
Comments
12 comments
Good morning,
I'm starting with Stape :)
I find your explanation complicated.
In Cloudflare your screenshot is not clear to me.
AT STAPE
Custom domain
Domain Name: https://NAME.stape.io
Own Cdn
AT CLOUDFLARE
CNAME > ss = NAME ? > .= ? stape.io > proxied true > auto TTL
I am taking an example to show you what is difficult for me to understand in your explanation and how I configured this hazardous deduction, so can you tell me if it is correct?
AT STAPE
Domain Name: Https://gtm.mysite.com
Own Cdn
AT CLOUDFLARE
DNS
CNAME > gtm > mysite.com > proxied true > auto TTL
PAGE RULE
URL (required)
https://mysite.com/metrics/*
Currently and for 2 days in my container, my personalized domain is still being verified
Kind regards
CM
Hi,
When creating a CNAME record in Target/Content, you need to specify the value specified in your container on Stape.
In your case, the record should look like this:
Type: CNAME
Name: gtm
Target/Content: eu.stape.io
TTL: Auto
Proxy status: true
This new server URL configuration update with CloudFlare messed things up for me.
Before, using the old cache rules, having to use the DNS type A within CF and then switching to Own CDN within Stape, everything worked perfectly, with no cache bugs.
My form always sent the correct date and time to Active, and I never had issues with capturing UTMs from people who signed up through my form. Life was smooth, and everything worked.
After this configuration update, I decided to "update mine" and it was the worst thing I did.
By deleting the old rules and removing the DNS type A to use the DNS type CNAME and the new rules, everything got worse.
My site can't pull all UTMs correctly, the date and time in the Elementor form are always bugged, and to top it off, it's even bugging Active Campaign.
Please, Stape, try to resolve this.
We’re sorry to hear that you’ve encountered such difficulties using own CDN for sGTM. But if you have done everything correctly - this setting simply proxies sGTM traffic through Cloudflare. There are not and should not be any dependencies for your forms or Active Campaign to work, only if you have configured something very incorrectly or you have additional settings/rules in CF for other functionality that conflict in some way.
Our support team has also not received any such complaints from other users.
I think if you have the opportunity to contact the developers - they will definitely be able to help you with identifying the source of the problem.
Thanks a lot for taking time and the effort to make this great resource! Will we still need to go through all of these steps if we choose Stape Global CDN instead of Own CDN?
Hello Said,
To answer your first question:
Stape Global CDN and Own CDN perform different functions, so you don't need to make these settings in Cloudflare if you choose Stape Global CDN.
You just need to create the required DNS records to verify your custom subdomain.
And your second question:
Own CDN and Same origin domain perform the same function, so if you set up Own CDN, you don't need to set up Same origin domain as well.
Hope this helps.
Hello, thank you for your reply!
Still have one more doubt. Can I link my custom domain name using Own CDN and skip all of the steps mentioned in this article, and only apply same origin configuration? 👌🏻
Hi, Said
Two tutorials are incompatible with each other.
You either add a custom domain by choosing an Own CDN option, or set up the same origin using this tutorial https://stape.io/news/a-new-way-to-set-up-a-custom-domain-in-server-gtm
Both ways help increase cookie lifetime by setting first-party cookies instead of third-party cookies.
Regards
Hi Dmytro,
Thanks for the clarification, I have chosen to map a custom domain for the sGTM using Stape Global CDN and setup same origin config.
Have a wonderful day
Hi again,
As I mentioned in my previous comment, I am now working with same-origin config via Cloudflare. When I click on the preview button on my server-side GTM container I get a 404 page, but when I switch back to https:// metrics . mydomain . com, the GTM debugging page shows up. Do you know what could be the cause of that?
Thank you.
Hi, Said
Please write to us with full information at support@stape.io
Regards
All right, thank you!
